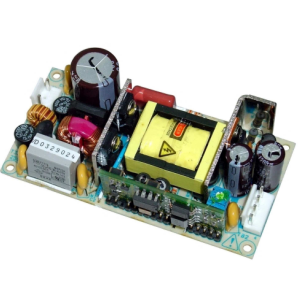

DZ065 Series
DZ065 series is a universal input power supply. The series is a 65 watt power supply in the size of 2”x 4” with a wattage density of 5.7W/in 3. The efficiency can reach up to 85%.
Features
- EMI FCC Class B
- No Minimum Load Required
- Single Output
- Universal input 90VAC to 264VAC
- Low Leakage
- Double Fused
Applications
- Computer Peripherals
- Telecommunications
- Tape Drives
- Test Instrumentation Product
- Data Acquisition
- Medical & Dental
| wdt_ID | Part No. | Safety | Input | Type | Output | Voltage | Wattage | Size (mm) | Size (in) | EMI | Standby Loss | PFC | PDF SPECS | 3D PDF | 3D CAD IGS/STEP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DZ065-6 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 5V | 35W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
| 2 | DZ065-7 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 12V | 55W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
| 3 | DZ065-8 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 15V | 55W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
| 4 | DZ065-9 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 24V | 55W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
| 5 | DZ065-14 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 48V | 55W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
| 6 | DZ065-18 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90 - 264 Vac | Open-Frame | Single | 3.3V | 55W | 50.8 x 101.6 mm | 2.0 x 4.0 in | Class B | 0 | None | PDF SPECS | n/a | n/a |
