DZ150 Series

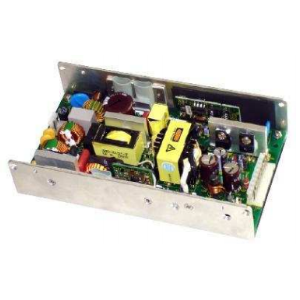

DZ150 series are 150W with active PFC in a U shape chassis power supply. With soft swittching topology, low profile height fits 1U constraints, high efficiency and high density in 4.0W/in2. 220W peak rating for 8 seconds.
Features
- EMI FCC Class B
- Power Factor Correction
- No Minimum Load Required
- Single and Multiple Output
- Universal input 90VAC to 264VAC
Applications
- Computer Peripherals
- Telecommunications
- Tape Drives
- Test Intrumentation Product
- Data Acquisition
- Medical
| wdt_ID | Part No. | Safety | Input | Type | Output | Voltage | Wattage | Size (mm) | Size (in) | EMI | Standby Loss | PFC | PDF SPECS | 3D PDF | 3D CAD IGS/STEP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DZ150-11EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 5 / 24 / 12 / -12V | 142W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 2 | DZ150-12EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 5 / 12V | 134W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 3 | DZ150-14EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Single | 48V | 154W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 4 | DZ150-19EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 3.3 / 5 / 12 / -12V | 121W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 5 | DZ150-1EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 5 / 12 / -12V | 140W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 6 | DZ150-6EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Single | 5V | 140W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 7 | DZ150-7EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 12 / 5V | 154W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 8 | DZ150-7EC-1 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Single | 12V | 156W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 9 | DZ150-8EC | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Multiple | 15 / 5V | 154W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
| 10 | DZ150-8EC-1 | IT -UL/EN 60950-1, Medical -UL/EN 60601-1 | 90-264 VAC | Enclosed Case | Single | 15V | 150W | 96.5 x 172.7 mm | 3.8 x 6.8 in | Class B | - | Yes | DZ150 Series | DZ150 3D | DZ150 3D CAD |
