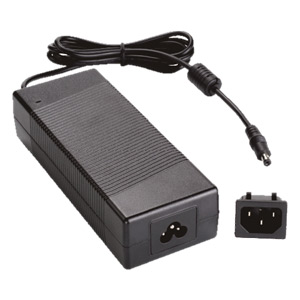

L6R120D Series
Innovative, reliable, and inexpensive. This economical DOE Level VI compliant power supply/charger is available in a variety of voltage levels, 12.0Vdc to 56.0Vdc (in increments of 0.1V) to match your needs. Rated up to 120W when powering either stationary or charging portable devices.
Features
- DOE Level VI Efficiency Rating
- Universal Input: 90 ~ 264Vac, 47/63 Hz
- UL/cUL Safety Approved
- Corded Output Connection
- IEC 60320 C6, C8 or C14 AC input connectors
- Light Weight and Compact
Applications
- Computer Peripherals
- POS equipment
- ITE devices
- Portable equipment
| wdt_ID | Part No. | Safety | Input | Type | Output | Voltage | Wattage | Size (mm) | Size (in) | EMI | Standby Loss | PFC | PDF SPECS | 3D PDF | 3D CAD IGS/STEP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | L6R120D-120 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 12.0V | 108W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 2 | L6R120D-150 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 15.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 3 | L6R120D-160 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 16.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 4 | L6R120D-180 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 18.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 5 | L6R120D-190 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 19.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 6 | L6R120D-200 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 20.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 7 | L6R120D-240 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 24.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 8 | L6R120D-300 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 30.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 9 | L6R120D-480 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 48.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
| 10 | L6R120D-560 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Desktop Power Supply | Single | 56.0V | 120W | 168 x 66 x 39 mm | 6.61 x 2.60 x 1.54 in | Class B | 0.15W | Yes | L6R120D | - | - |
