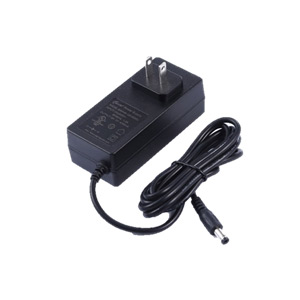

L6R36 Series
Innovative, inexpensive and reliable. This economical DOE Level VI compliant power supply/charger is available in a variety of voltage levels, 9.0 to 36.0Vdc (in increments of 0.1V) to match your needs. Rated up to 36W when charging or powering portable/mobile devices or small electronic equipment.
Features
- DOE Level VI Efficiency Rating
- Universal Input: 90 ~ 264Vac, 47/63 Hz
- Corded DC Output Connector
- 5Vdc USB Connection Available
- Light Weight and Compact
Applications
- Portable equipment
- POS devices
- Portable charger
wdt_ID | Part No. | Safety | Input | Type | Output | Voltage | Wattage | Size (mm) | Size (in) | EMI | Standby Loss | PFC | PDF SPECS | 3D PDF | 3D CAD IGS/STEP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | L6R36-090 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 9.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
2 | L6R36-120 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 12.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
3 | L6R36-150 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 15.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
4 | L6R36-180 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 18.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
5 | L6R36-190 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 19.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
6 | L6R36-240 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 24.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
7 | L6R36-300 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 30.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - | |
8 | L6R36-360 | ITE -UL/EN 60950-1 2nd ed. | 90-264 VAC | Adapter | Single | 36.0V | 36W | 97.0 x 45.0 x 34.6 mm | 3.82 x 1.77 x 1.36 in | Class B | No | L6R36 | - | - |
