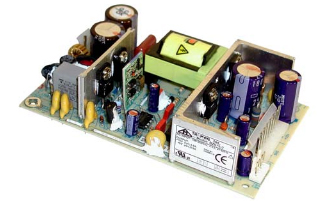

DY075 Series

DY075 series is a universal input multiple output power supply. The series is a 75 watts power supply in the size of 3”x 5” with a wattage density of 3.9W/in 3. The efficiency can reach up to 75-87% depending on model.

Features

  • EMI FCC Class B
  • No Minimum Load Required
  • Single Output
  • Universal input 90VAC to 264VAC
  • Low Leakage
  • Double Fused

Applications

  • Computer Peripherals
  • Telecommunications
  • Tape Drives
  • Test Instrumentation Product
  • Data Acquisition
  • Medical & Dental
wdt_ID Part No. Safety Input Type Output Voltage Wattage Size (mm) Size (in) EMI Standby Loss PFC PDF SPECS 3D PDF 3D CAD IGS/STEP
1 DY075-1 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac 5 / 12 / -12V 75W Class B 0 None PDF SPECS n/a n/a
2 DY075-3 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Multiple 5 / 12V 66W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
3 DY075-6 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Single 5V 70W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
4 DY075-7 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Multiple 12 / 5V 70W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
5 DY075-8 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Multiple 15 / 5V 75W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
6 DY075-9 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Multiple 24 / 5V 75W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
7 DY075-14 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Single 48V 75W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
8 DY075-18 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Single 3.3V 50W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
9 DY075-19 IT -UL/EN 60950-1, Medical -UL/EN 60601-1 90 - 264 Vac Open-Frame Multiple 3.3 / 5 / 12 / -12V 70W 76.2 x 127.0 mm 3.0 x 5.0 in Class B 0 None PDF SPECS n/a n/a
